This Outdoor dry type instrument transformer used in 0.66kV power system, for measuring and protection.
It have been used in cubicle switchgear or in bay-installed switching stations.
The current transformer made from low temperature indoor epoxy resin, amorphous alloy core for metering and high quality CRGO core for protection, primary and secondary use pure electrolytic copper.
All SAGHU Electric instrument transformers are in conformity with IEC standards, and recommendations IEC 60044-1. Transformers in conformity with specific country standards can also be supplied. (IEEE C57.13, NBR6855, NBR6856…).

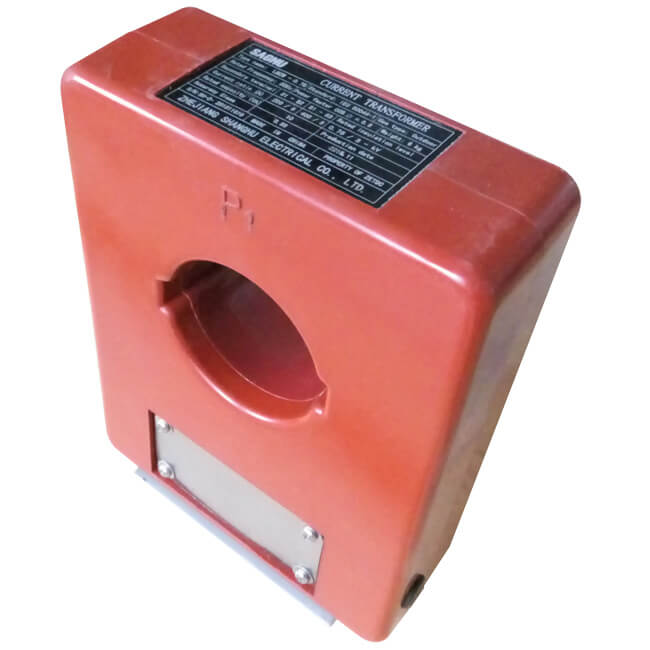

LMZW-0.75 low voltage current transformer
