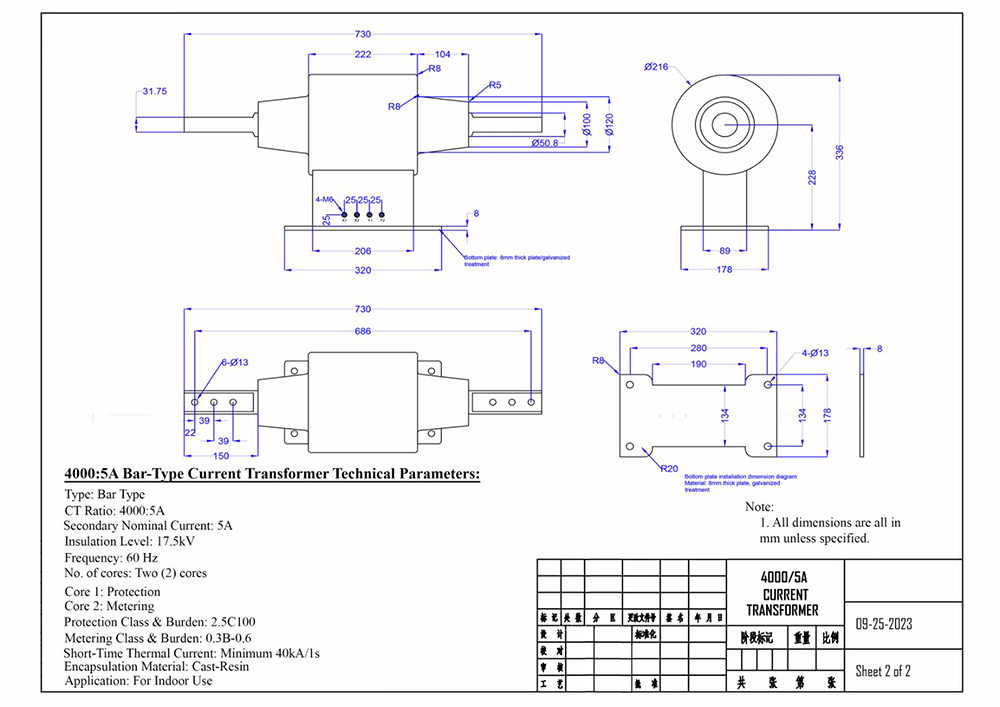

busbar bushing type current transformer

General

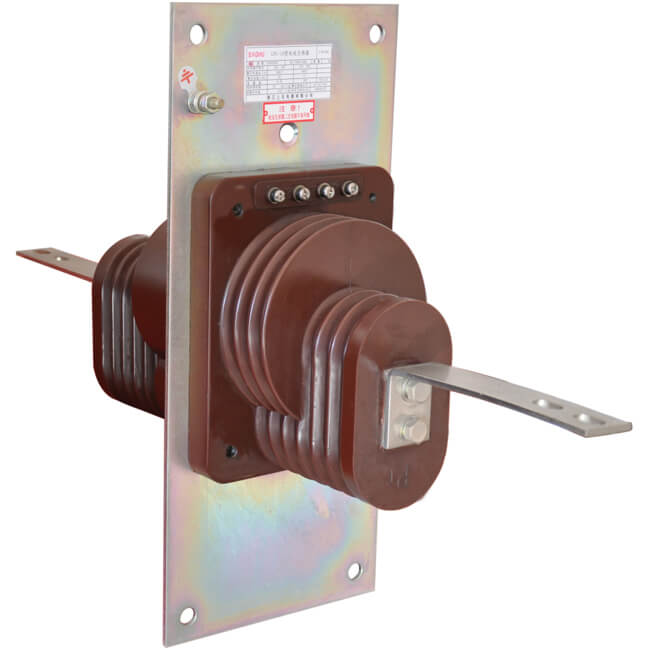

This indoor epxoy resin burbar bushing type instrument transformer used in 10kV, 11kV power system, for measuring and protection. LFC-10 busbar bushing type current transformer
It have been used in  cubicle switchgear or in bay-installed switching stations.
The current transformer made from high temperature indoor epoxy resin, amorphous alloy core for metering and high quality CRGO core for protection, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.

Standards
All SAGHU Electric instrument transformers are in conformity with IEC standards, and recommendations IEC 60044-1. Transformers in conformity with specific country standards can also be supplied. (IEEE C57.13, NBR6855)

usbar bushing type current transformLF0 busbar bushing type current transformer
